車規級MCU
LKS32AT085/LKS32AT086是凌鷗創芯針對汽車級應用，推出的高性能車規級運動控制系列芯片，通過AECQ100等級測試認證。集成儀表級全差分可編程增益放大器+差分ADC，不需要電壓偏置就可以處理正負信號；集成同步雙采樣3Msps 12BIT高速ADC，集成全溫度范圍千分之五電壓基準源；集成96MHz 32BIT MCU+DSP,自主指令集DSP可作為異構獨立核心運行程序，三角函數運算、開方運算100ns內完成；其中LKS32AT086集成6N預驅。
| Device | MHz | Flash(kB) | RAM(kB) | ADC Ch. | DAC | Comp | Comp Ch. | OPA | HaLL | SPI | IIC | UART | CAN | QEP | Gate driver | Current(A) | Source(V) | Voltage(V) | Others | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LKS32AT085C8Q9 | 96 | 64 | 8 | 12 | 12bitx1 | 2 | 9 | 4 | 3-way | 1 | 1 | 2 | Yes | Yes | QFN48 | |||||
| LKS32AT086N8Q9 | 96 | 64 | 8 | 11 | 12bitx1 | 2 | 9 | 4 | 3-way | 1 | 1 | 2 | Yes | Yes | 6N | +1.2/-1.5 | 4.5~20 | 200 | QFN52 | |
| LKS32AT089XLN8Q9 | 96 | 64 | 8 | 11 | 12bitx1 | 2 | 9 | 4 | 3-way | 1 | 1 | 2 | Yes | Yes | 6N | +1.2/-1.5 | 4.5~20 | 200 | LIN | QFN52 |
| LKS32AT039PXL5G6Q9B | 48 | 32 | 4 | 9 | 8bitx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 1 | ||||||||
| LKS32AT075CBQ9 | 96 | 128 | 12 | 13 | 12bitx2 | 3 | 9 | 4 | 3-way | 1 | 1 | 2 | Yes | Yes | QFN48 |
下載資源
Datasheet
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32AT039_DS | LKS32AT039數據手冊 | 1.27 | 2024.05.30 |
| LKS32AT075_DS | LKS32AT075數據手冊 | 1.02 | 2025.01.03 |
| LKS32AT085_DS | LKS32AT085數據手冊 | 1.32 | 2024.07.20 |
| LKS32AT086_DS | LKS32AT086數據手冊 | 1.35 | 2023.12.26 |
| LKS32AT089XL_DS | LKS32AT089XL數據手冊 | 1.22 | 2024.11.24 |
User Manual
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32AT03x_UM | LKS32AT03x用戶手冊 | 1.55 | 2024.06.19 |
| LKS32AT07x_UM | LKS32AT07x用戶手冊 | 1.26 | 2025.01.03 |
| LKS32AT08x_UM | LKS32AT08x用戶手冊 | 1.37 | 2024.06.19 |
Device Pack
| Download | Description | Version | Update |
|---|

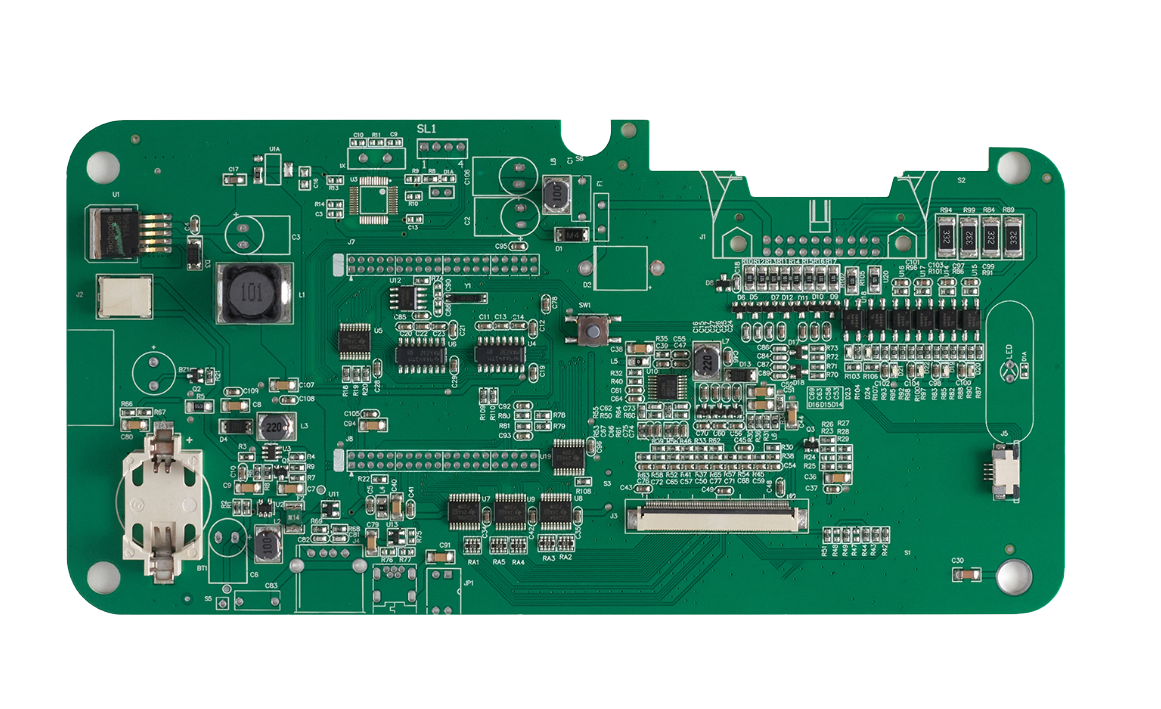

Demo Board
| Download | Description | Version | Update |
|---|---|---|---|
| LKS_EVB_MCUAT037 | Single MCU demo board for LKS32AT037 | 3.1 | 2024.10.30 |
| LKS_EVB_MCUAT039 | Single MCU demo board for LKS32AT039 | 6.2 | 2024.10.09 |
| LKS_EVB_MCUAT075 | Dual motor control MCU core demo board | 1.0 | 2024.10.30 |
| LKS_EVB_MCUAT075 | Single MCU demo board for LKS32AT075 | 1.0 | 2024.10.30 |
| LKS_EVB_MCUAT085 | Single MCU demo board for LKS32AT085 | 3.2 | 2023.12.27 |
| LKS_EVB_MCUAT086 | Single MCU demo board for LKS32AT086 | 4.2 | 2023.10.18 |
| LKS_EVB_MCUAT089 | Single motor control MCU core demo board | 1.3 | 2024.10.30 |
Software Reference
| Download | Description | Version | Update |
|---|
Tools & Software
| Download | Description | Version | Update |
|---|
Application Note
| Download | Description | Version | Update |
|---|
