LKS05系列

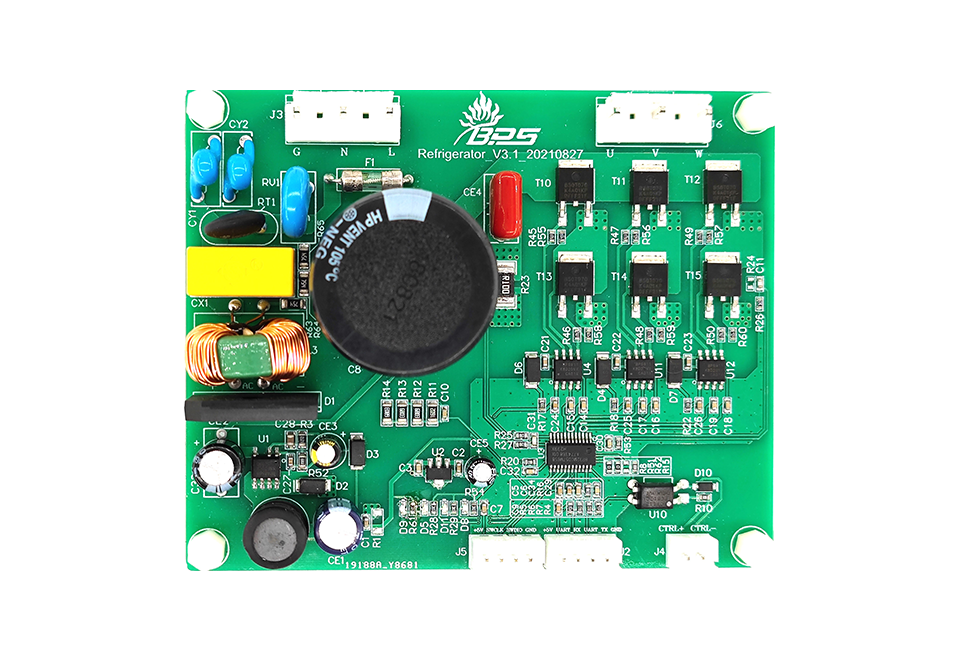

LKS05系列MCU是凌鷗創芯針對電機驅動市場，推出的高性價比電機運動控制系列芯片。集成儀表級全差分可編程增益放大器+差分ADC，不需要電壓偏置就可以處理正負信號；集成同步雙采樣3Msps 12BIT高速ADC，集成全溫度范圍千分之五電壓基準源；集成96MHz 32BIT CPU，三角函數運算、開方運算100ns內完成；工作溫度范圍-40~105℃，內部RC全溫度范圍時鐘偏差±1%以內。芯片引腳通過6KV人體模型引腳接觸放電，通過15KV非觸式空氣靜電放電測試。LKS05系列MCU在提供電機控制應用必須資源的前提下仍具有極佳性價比。
| Device | Freq(MHz) | Flash(kB) | RAM(kB) | ADC Ch. | DAC | Comp | Comp Ch. | OPA | HaLL | SPI | IIC | UART | CAN | QEP | Gate driver | Gate driver current(A) | Gate driver supply(V) | Floating voltage(V) | Others | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LKS32MC051C6T8 | 96 | 32 | 2.5 | 12 | 12BITx1 | 2 | 8 | 2 | 3-way | 1 | 1 | 2 | TQFP48 | |||||||
| LKS32MC051DC6T8 | 96 | 32 | 2.5 | 11 | 12BITx1 | 2 | 8 | 2 | 3-way | 1 | 1 | 2 | 6N | +1.2/-1.5 | 4.5~20 | 200 | TQFP48 | |||
| LKS32MC052K6Q8 | 96 | 32 | 2.5 | 8 | 12BITx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 2 | QFN32 | |||||||
| LKS32MC054DF6Q8 | 96 | 32 | 2.5 | 9 | 12BITx1 | 2 | 8 | 2 | 3-way | 1 | 1 | 2 | 6N | +1.2/-1.5 | 4.5~20 | 200 | QFN40 | |||
| LKS32MC054DOF6Q8 | 96 | 32 | 2.5 | 9 | 12BITx1 | 2 | 8 | 2 | 3-way | 1 | 1 | 2 | 6N | +1.2/-1.5 | 4.5~20 | 200 | 5vLDO | QFN40 | ||
| LKS32MC055DL6S8 | 96 | 32 | 2.5 | 3 | 12BITx1 | 2 | 4 | 2 | 1-way | 1 | 1 | 2 | 3P3N | +0.05/-0.3 | 7.5~28 | 5vLDO | SOP16L | |||
| LKS32MC055EL6S8 | 96 | 32 | 2.5 | 4 | 12BITx1 | 2 | 6 | 1 | 3-way | 1 | 1 | 2 | 3P3N | +0.05/-0.3 | 7.5~28 | 5vLDO | SOP16L | |||
| LKS32MC057M6S8 | 96 | 32 | 2.5 | 6 | 12BITx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 2 | SSOP24 | |||||||
| LKS32MC057EM6S8 | 96 | 32 | 2.5 | 6 | 12BITx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 2 | 3P3N | +0.05/-0.3 | 7.5~28 | 5vLDO | SSOP24 | |||
| LKS32MC057FM6S8 | 96 | 32 | 2.5 | 6 | 12BITx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 2 | 3P3N | +0.05/-0.3 | 7.5~28 | 5vLDO | SSOP24 |
下載資源
Datasheet
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC05x_DS | LKS32MC05x數據手冊 | 1.77 | 2025.01.03 |
| LKS32MC05x_6N_DS | LKS32MC05x集成6N預驅數據手冊 | 1.71 | 2025.01.03 |
| LKS32MC05x_3P3N_DS | LKS32MC05x集成3P3N預驅數據手冊 | 1.90 | 2025.01.03 |
| LKS32MC05x_ER | LKS32MC05x Errata | 1.0 | 2023.05.06 |
| LKS05x_LKS08x_diff | LKS05x與LKS08x系列異同比較 | 1.1 | 2023.03.29 |
User Manual
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC05x_UM | LKS32MC05x用戶手冊 | 1.23 | 2025.01.03 |
Device Pack
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC05x_Keil5 | LKS32MC05x Keil5 device files | 1.15 | 2025.02.07 |
| LKS32_Keil4 | LKS32 Keil4 device setup | 1.79 | 2024.01.12 |
Demo Board
| Download | Description | Version | Update |
|---|---|---|---|
| LKS_EVB_MCU051D | Single MCU demo board for LKS32MC051D | 2.0 | 2024.07.02 |
| LKS_EVB_MCU051 | Single MCU demo board for LKS32MC051 | 2.1 | 2024.07.02 |
| LKS_EVB_MCU052 | Single MCU demo board for LKS32MC052 | 2.0 | 2024.07.02 |
| LKS_EVB_MCU054DO | Single MCU demo board for LKS32MC054DO | 2.1 | 2024.07.02 |
| LKS_EVB_MCU054D | Single MCU demo board for LKS32MC054D | 2.1 | 2024.07.02 |
| LKS_EVB_MCU055E | Single MCU demo board for LKS32MC055E | 2.0 | 2024.05.08 |
| LKS_EVB_MCU055D | Single MCU demo board for LKS32MC055D | 2.0 | 2024.05.08 |
| LKS_EVB_MCU057 | Single MCU demo board for LKS32MC057 | 2.1 | 2024.07.03 |
| LKS_EVB_MCU057F | Single MCU demo board for LKS32MC057F | 2.0 | 2024.05.08 |
| LKS_EVB_MCU057E | Single MCU demo board for LKS32MC057E | 2.0 | 2024.05.08 |
| LKS_EVB_MVPOW6N | Mother board for 6N MCU daughter board | 4.0 | 2024.12.12 |
| LKS_EVB_MVPOWPRE | Mother board with gate-drivers for single MCU daughter board | 5.0 | 2023.10.18 |
| LKS_EVB_HVPOWPRE | Mother board with HV gate drivers | 2.0 | 2023.03.28 |
| LKS_EVB_MVPOW3P3N | Mother board for 3P3N MCU daughter board | 2.0 | 2023.03.28 |
Software Reference
| Download | Description | Version | Update |
|---|---|---|---|
| LKS05x_Introduction | LKS05x介紹培訓講義PPT | 1.7 | 2023.02.14 |
| LKS32MC05x_DevDriver | LKS32MC05x 外設庫函數(外設驅動)Device Drivers | 1.24 | 2025.01.10 |
| LKS32MC05x_PeripDemo | LKS32MC05x 外設示例工程Peripheral Demo Projects | 1.9 | 2024.09.07 |
| LKS05x_ClassB_sLib | LKS05x ClassB 功能安全認證軟件庫 | 1.0 | 2022.12.28 |
