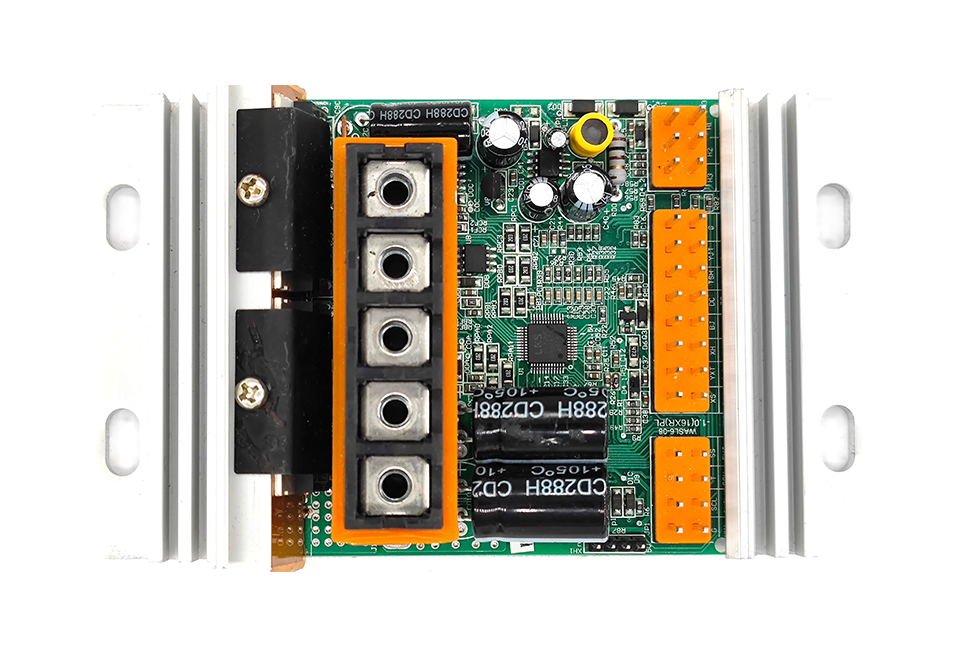

LKS06系列
LKS06系列MCU是凌鷗創芯針對電機驅動市場，推出的電機專用運動控制系列芯片。集成儀表級全差分可編程增益放大器+差分ADC，不需要電壓偏置就可以處理正負信號；集成同步雙采樣3Msps 12BIT高速ADC，集成全溫度范圍千分之五電壓基準源；集成96MHz 32BIT MCU，除法，開方運算100ns內完成；工作溫度范圍-40~105℃，內部RC全溫度范圍時鐘偏差±1%以內。芯片引腳通過6KV人體模型引腳接觸放電，通過15KV非觸式空氣靜電放電測試。
| Device | Freq(MHz) | Flash(kB) | RAM(kB) | ADC Ch. | DAC | Comp | Comp Ch. | OPA | HaLL | SPI | IIC | UART | CAN | QEP | Gate driver | Gate driver current(A) | Gate driver supply (V) | Floating voltage(V) | Others | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LKS32MC061C6T8 | 96 | 32 | 4 | 12 | 12BITx1 | 2 | 8 | 4 | 3-way | 1 | 1 | 2 | TQFP48 | |||||||
| LKS32MC062K6Q8 | 96 | 32 | 4 | 12 | 12BITx1 | 2 | 6 | 3 | 3-way | 1 | 1 | 2 | QFN32 | |||||||
| LKS32MC066N6Q8 | 96 | 32 | 4 | 12 | 12BITx1 | 2 | 7 | 3 | 3-way | 1 | 1 | 2 | +1.2/1.5 | 10-25 | 200 | QFN52L |
下載資源
Datasheet
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC061_DS | LKS32MC061數據手冊 | 1.3 | 2023.03.28 |
| LKS32MC062_DS | LKS32MC062數據手冊 | 1.3 | 2023.03.28 |
| LKS32MC066_DS | LKS32MC066數據手冊 | 1.5 | 2023.03.28 |
User Manual
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC06x_UM | LKS32MC06x用戶手冊 | 1.23 | 2023.03.28 |
Device Pack
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC06x_Keil5 | LKS32MC06x Keil5 device files | 1.08 | 2025.02.07 |
| LKS32_Keil4 | LKS32 Keil4 device setup | 1.79 | 2024.01.12 |
Demo Board
| Download | Description | Version | Update |
|---|---|---|---|
| LKS_EVB_MCU06x | Single MCU demo board for LKS32MC06x | 5.0 | 2023.03.28 |
| LKS_EVB_MVPOW6N | Mother board for 6N MCU daughter board | 4.0 | 2024.12.12 |
| LKS_EVB_MVPOWPRE | Mother board with gate-drivers for single MCU daughter board | 5.0 | 2023.10.18 |
| LKS_EVB_HVPOWPRE | Mother board with HV gate drivers | 2.0 | 2023.03.28 |
| LKS_EVB_MVPOW3P3N | Mother board for 3P3N MCU daughter board | 2.0 | 2023.03.28 |
